3/8" 2-Flute Solid Carbide Compression Router Bit
3/8" 2-Flute Solid Carbide Compression Router Bit
Couldn't load pickup availability
Professional 2-Flute Compression Router Bit for CNC Woodworking
This 3/8" 2-flute compression router bit is designed for clean, high-quality cutting on laminated panels, melamine, MDF, plywood, particle board, and other engineered wood materials. The compression flute geometry helps reduce chipping on both the top and bottom surfaces, making it ideal for cabinet manufacturing, panel processing, and precision CNC woodworking.
Made from premium solid carbide with a durable coating, this cutter offers excellent wear resistance, smooth chip evacuation, and stable cutting performance in demanding production environments.
Key Features
2-Flute Compression Design
Helps produce clean top and bottom edges when cutting laminated and veneered panels.
Solid Carbide Construction
Provides high rigidity, long tool life, and consistent cutting accuracy.
Durable Coating
Improves wear resistance and helps maintain cutting performance over time.
Ideal for CNC Cabinet Shops
Suitable for melamine, MDF, plywood, particle board, laminate panels, and engineered wood.
Precision Machined
Designed for smooth cutting, reduced vibration, and reliable performance.

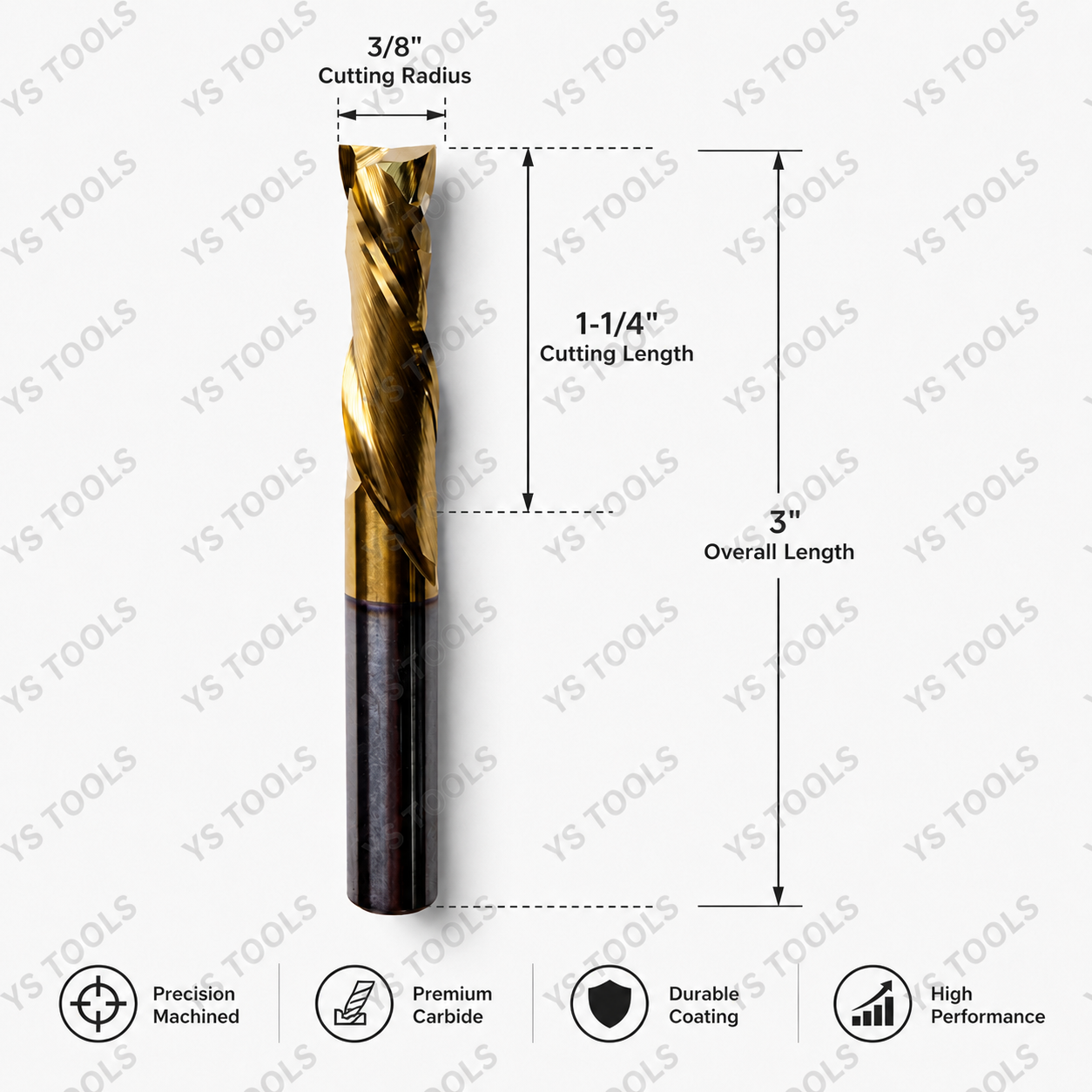

Specifications
| Specification | Value |
|---|---|
| Cutting Diameter | 3/8" |
| Shank Diameter | 3/8" |
| Cutting Length | 1-1/4" |
| Overall Length | 3" |
| Flutes | 2 Flutes |
| Material | Solid Carbide |
| Tool Type | Compression Router Bit |
| Application | CNC Woodworking / Panel Cutting |
Recommended Applications
This bit is suitable for:
Melamine panels, MDF, plywood, laminated particle board, cabinet panels, furniture components, and general CNC woodworking applications.
