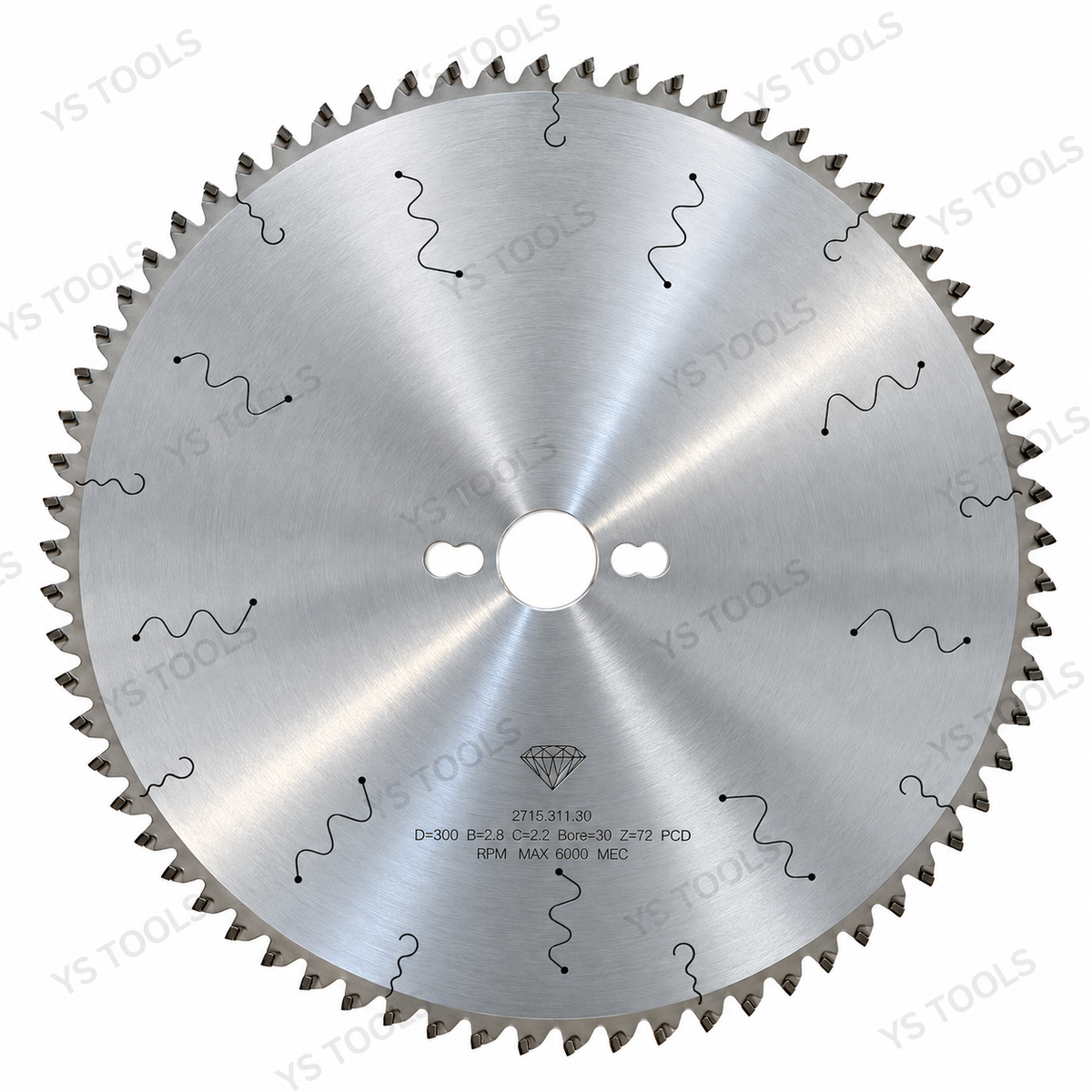

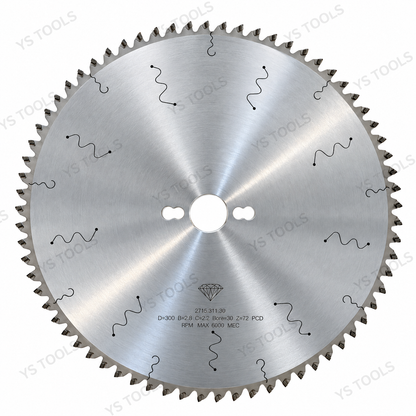

300mm (12") PCD Diamond Saw Blade – 72T, 30mm Bore | Long-Life Panel Cutting Blade| No Scoring Blade Required

Product Description

The YS TOOLS 300mm PCD Diamond Saw Blade is designed for professional panel cutting where clean edges, long tool life, and production efficiency are critical.

Unlike conventional carbide-tipped saw blades, the PCD (Polycrystalline Diamond) cutting teeth provide at least 10× longer service life, significantly reducing blade changes, sharpening frequency, machine downtime, and overall tooling cost.

A major advantage of this blade is its ability to produce a clean cut on both the top and bottom surfaces without requiring a separate scoring blade. This makes it an excellent solution for cutting laminated and coated panels where edge quality is important.

It is ideal for melamine, MDF, particleboard, laminated panels, plywood, and other engineered wood products, especially in cabinet, furniture, and panel-processing production.

Specifications

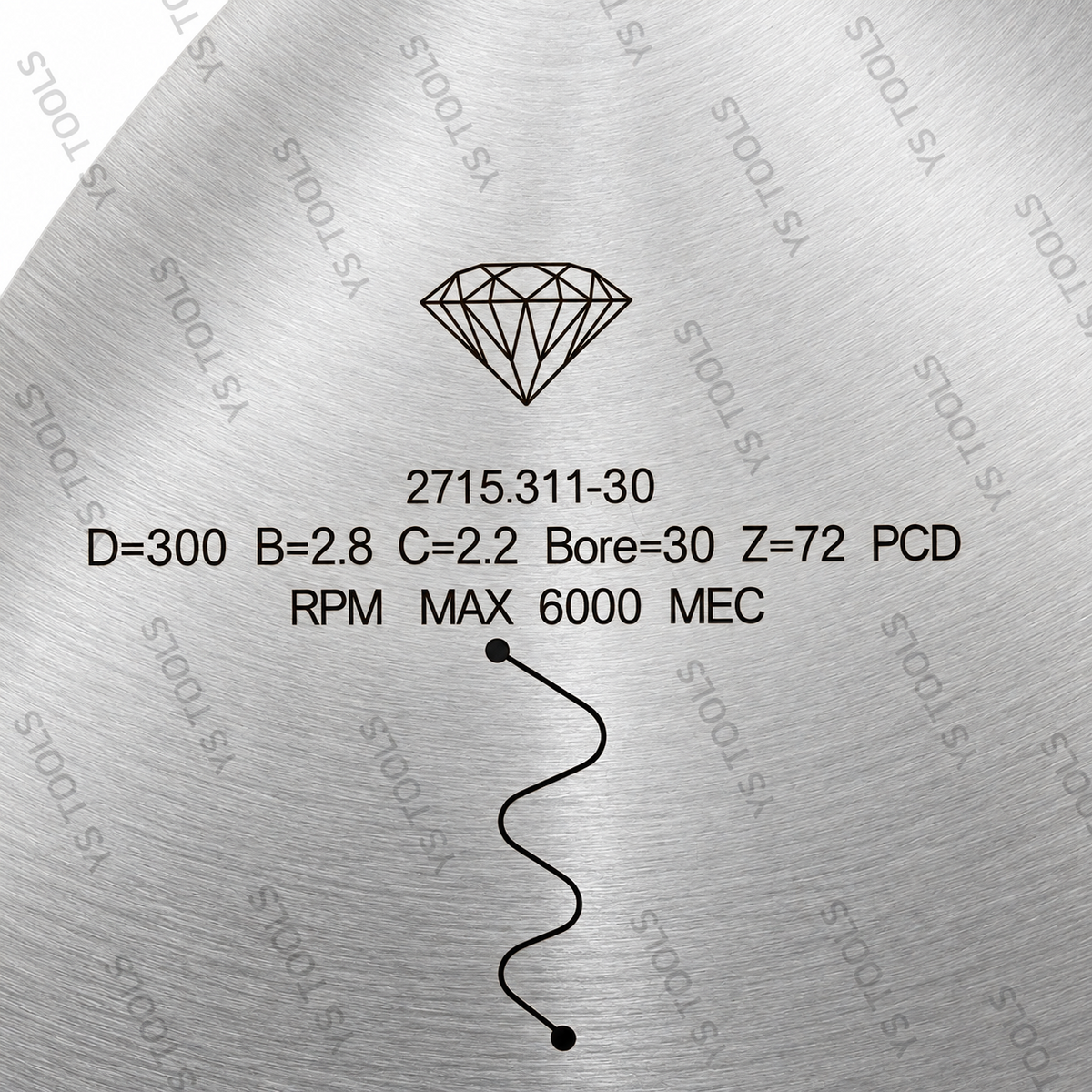

• Diameter: 300 mm / 12"

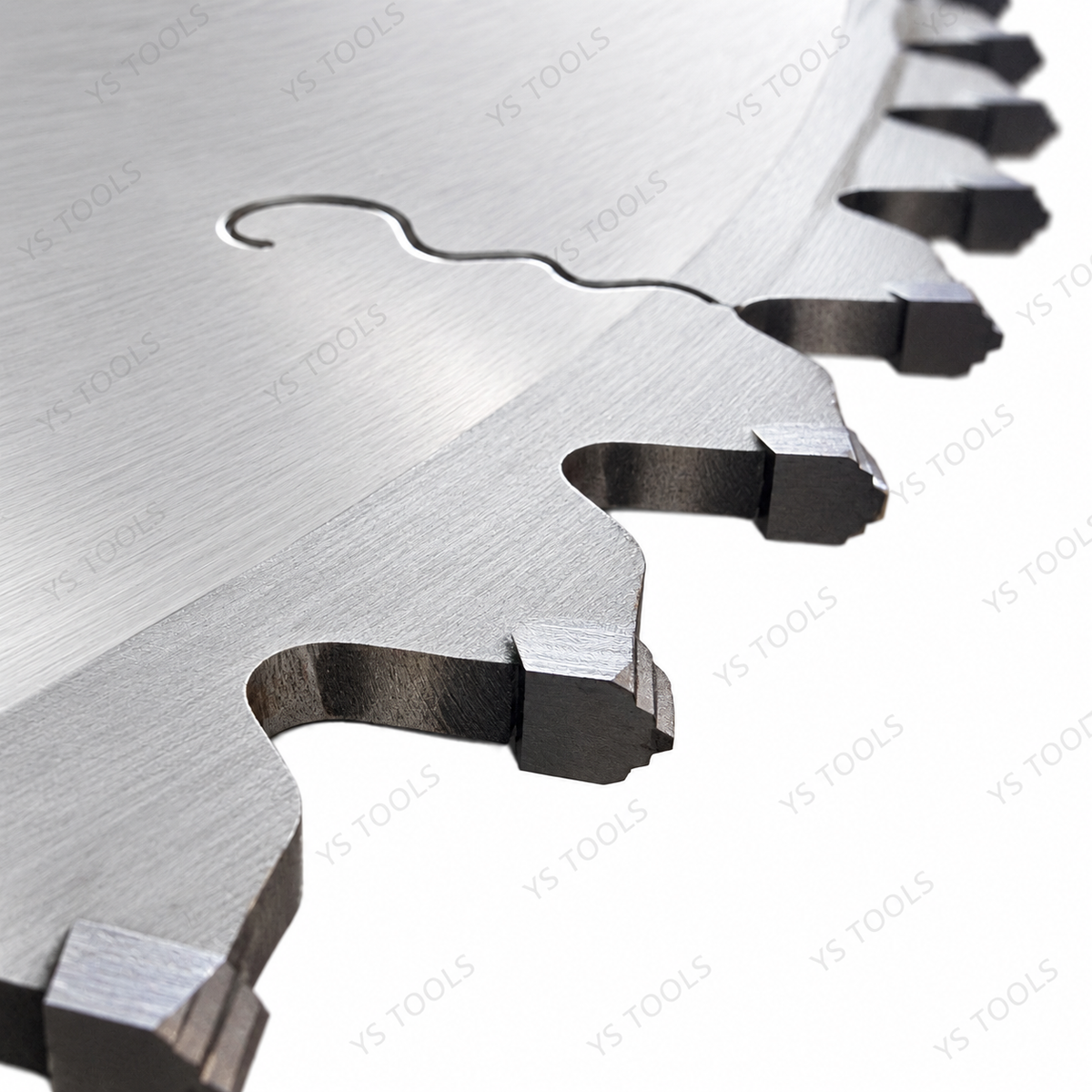

• Teeth: 72T PCD
• Kerf (B): 2.8 mm
• Blade Body Thickness (C): 2.2 mm
• Bore: 30 mm
• Maximum Speed: 6,000 RPM
• Cutting Material: PCD – Polycrystalline Diamond

Key Advantages

• 10×+ longer service life than conventional carbide-tipped saw blades
• Clean cutting on both sides of the panel
• No scoring blade required for clean top and bottom edges
• Excellent resistance to wear when cutting abrasive engineered wood
• Fewer blade changes and less production downtime
• Consistent cut quality over long production runs
• Ideal for high-volume cabinet and furniture manufacturing

Why Choose PCD?

PCD cutting edges are dramatically more wear-resistant than conventional carbide. For manufacturers processing large quantities of melamine, MDF, particleboard, and laminated panels, the longer blade life can substantially reduce the cost per cut even though the initial blade cost is higher.
