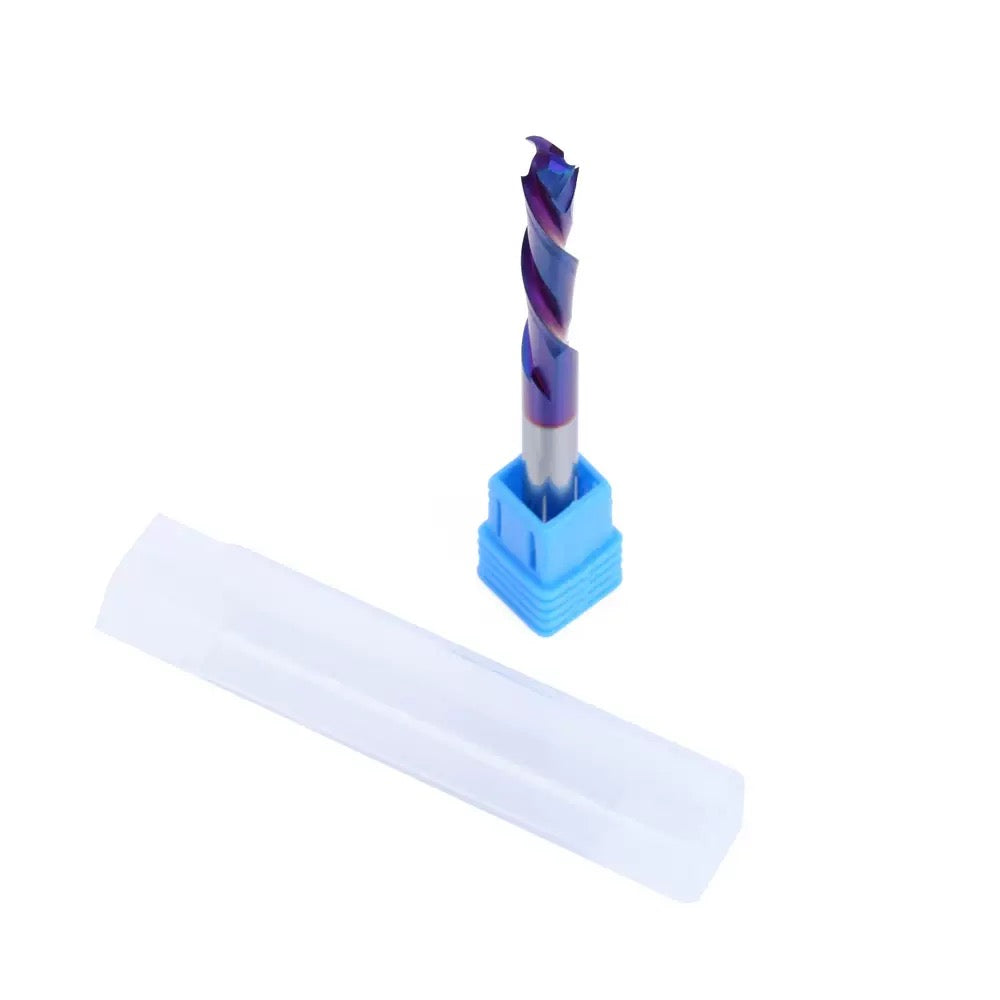

1/8" Solid Carbide Downcut Flush Trim Bit – 1/4" Shank
1/8" Solid Carbide Downcut Flush Trim Bit – 1/4" Shank
Regular price
$40.00
Regular price
Sale price
$40.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
1/8" Solid Carbide Downcut Router Bit
Two-flute downcut spiral router bit for CNC profiling and detailed woodworking. The downcut geometry helps reduce tear-out on the top face of the workpiece.

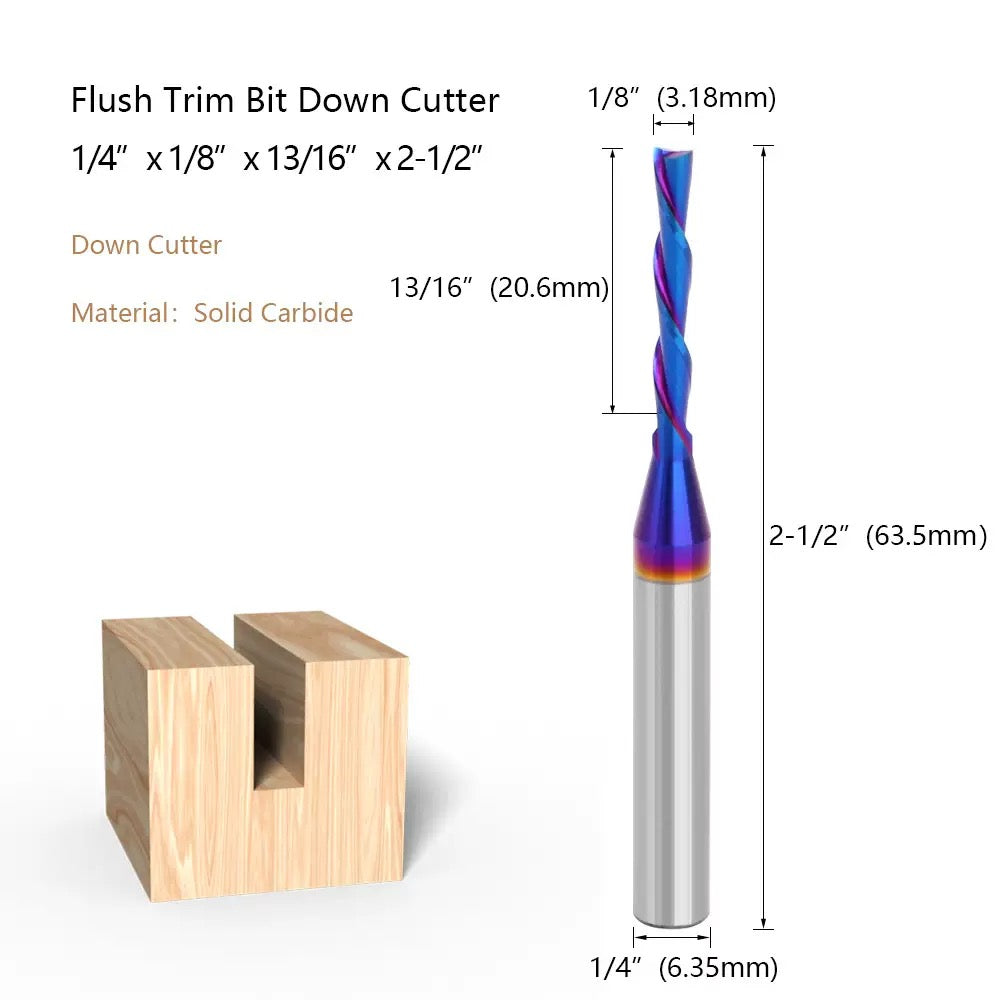

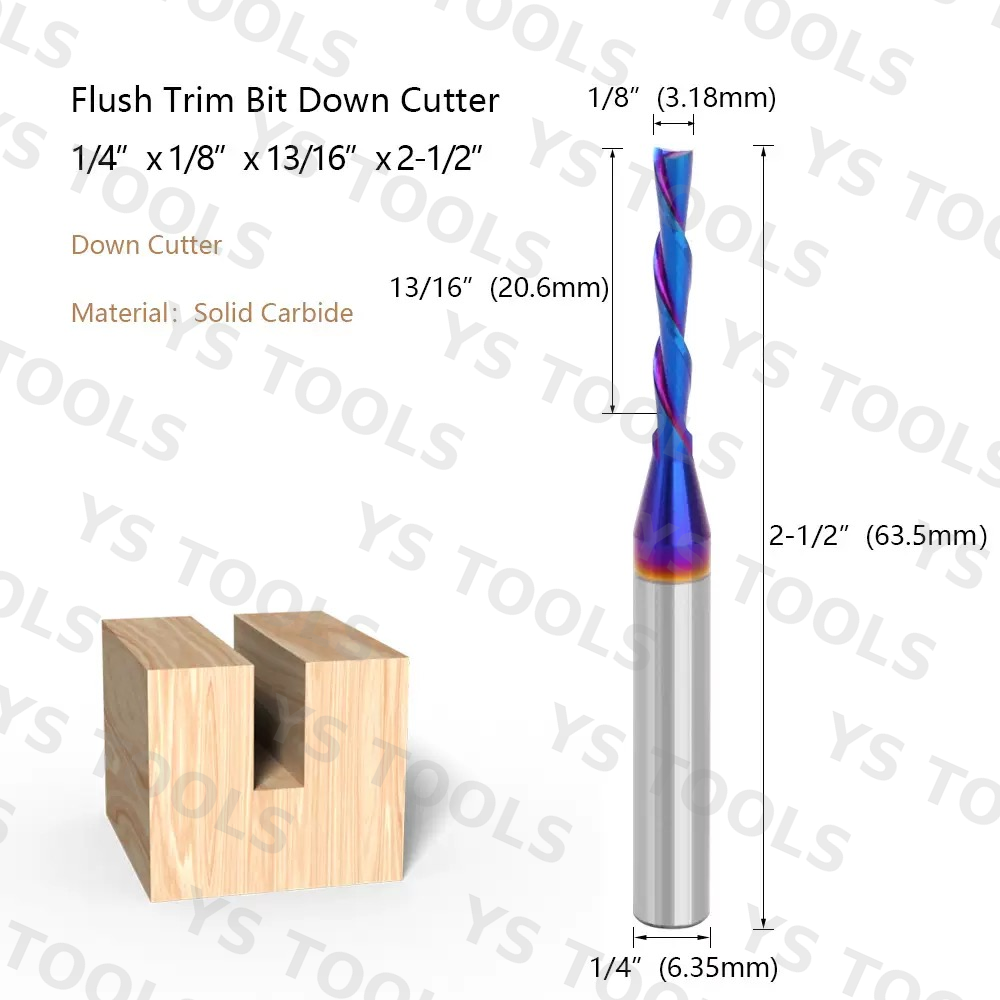

Technical Specifications
| Specification | Details |
|---|---|
| Cutting diameter | 1/8" (3.175 mm) |
| Cutting length | 13/16" (approximately 20.6 mm) |
| Shank diameter | 1/4" (6.35 mm) |
| Overall length | 2-1/2" (63.5 mm) |
| Flutes | 2 |
| Material | Solid carbide |
Suitable Materials
Plywood, MDF, melamine-faced panels and softwood.
Selection & Setup
Select a compatible 1/4-inch collet and a toolpath suited to the material. For flush-trimming applications, confirm the guiding arrangement required by your setup.
Need Help Choosing?
Contact YS Tools with your machine, material and required dimensions for selection support.
