120mm 24T Panel Saw Scoring Blade – 20mm Bore – 2.9–3.9mm Kerf – Carbide Tipped
120mm 24T Panel Saw Scoring Blade – 20mm Bore – 2.9–3.9mm Kerf – Carbide Tipped
Couldn't load pickup availability

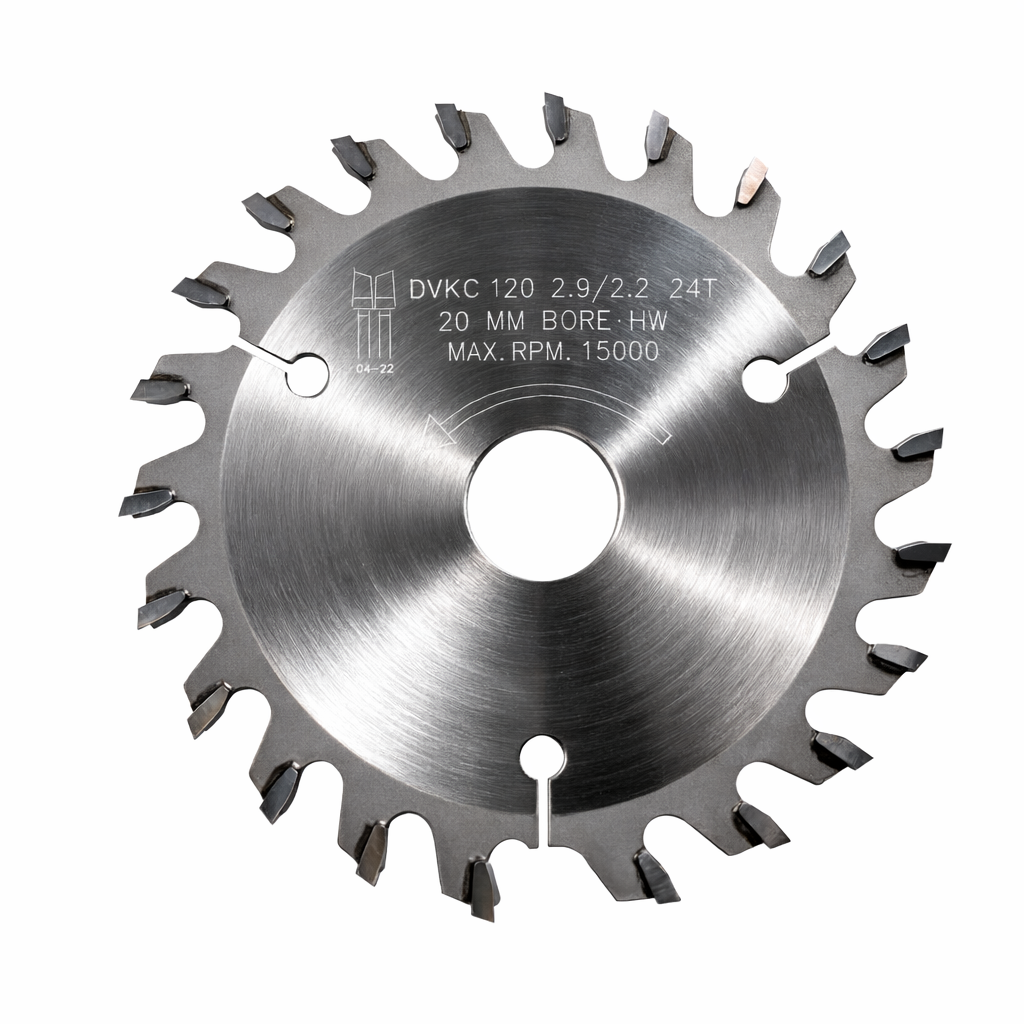

120 mm 24T Panel Saw Scoring Blade
Carbide-tipped scoring blade for pre-scoring laminated panels on compatible panel saws. The shallow scoring cut helps reduce breakout as the main blade completes the cut.

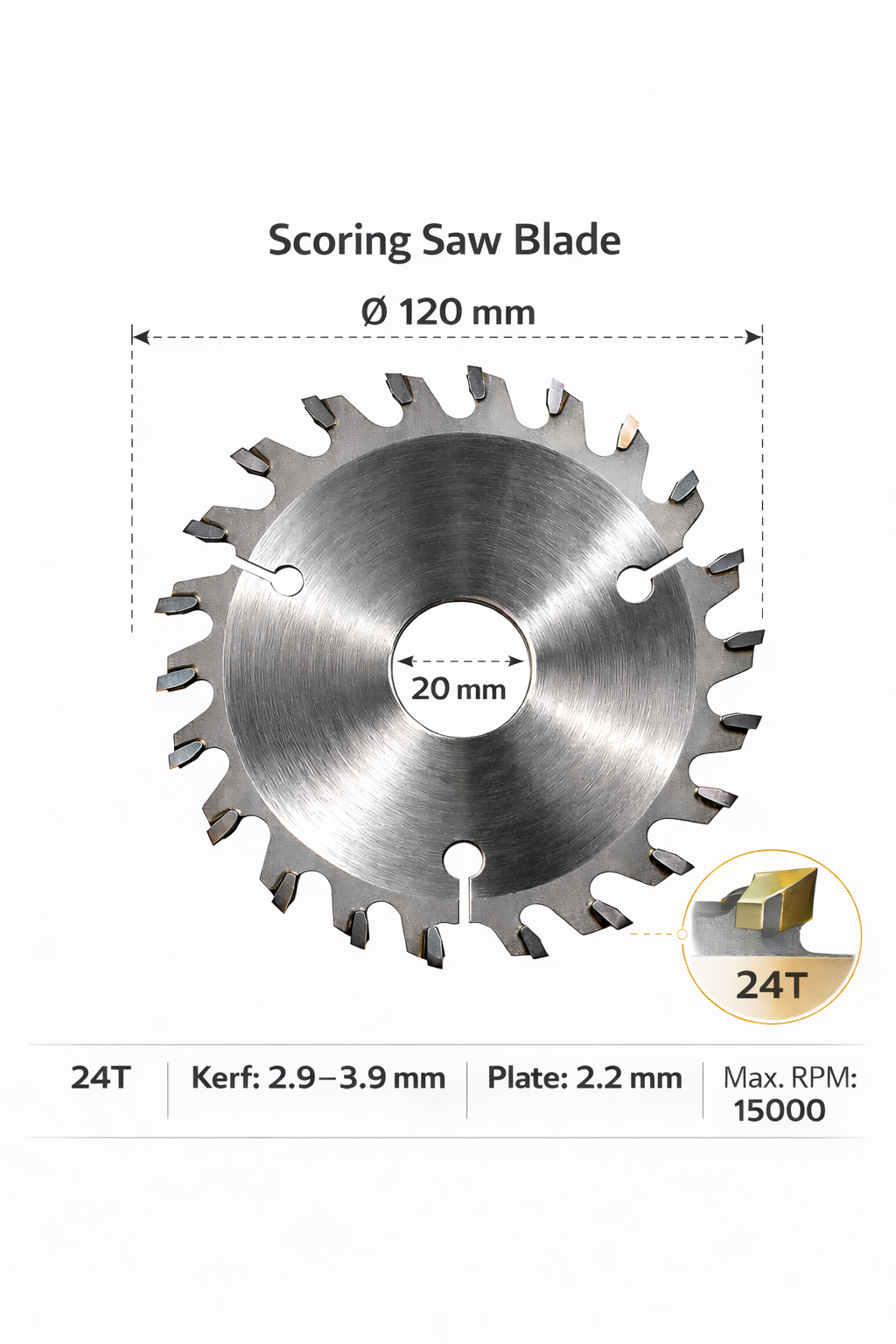

Technical Specifications
| Specification | Details |
|---|---|
| Diameter | 120 mm |
| Teeth | 24 |
| Bore | 20 mm |

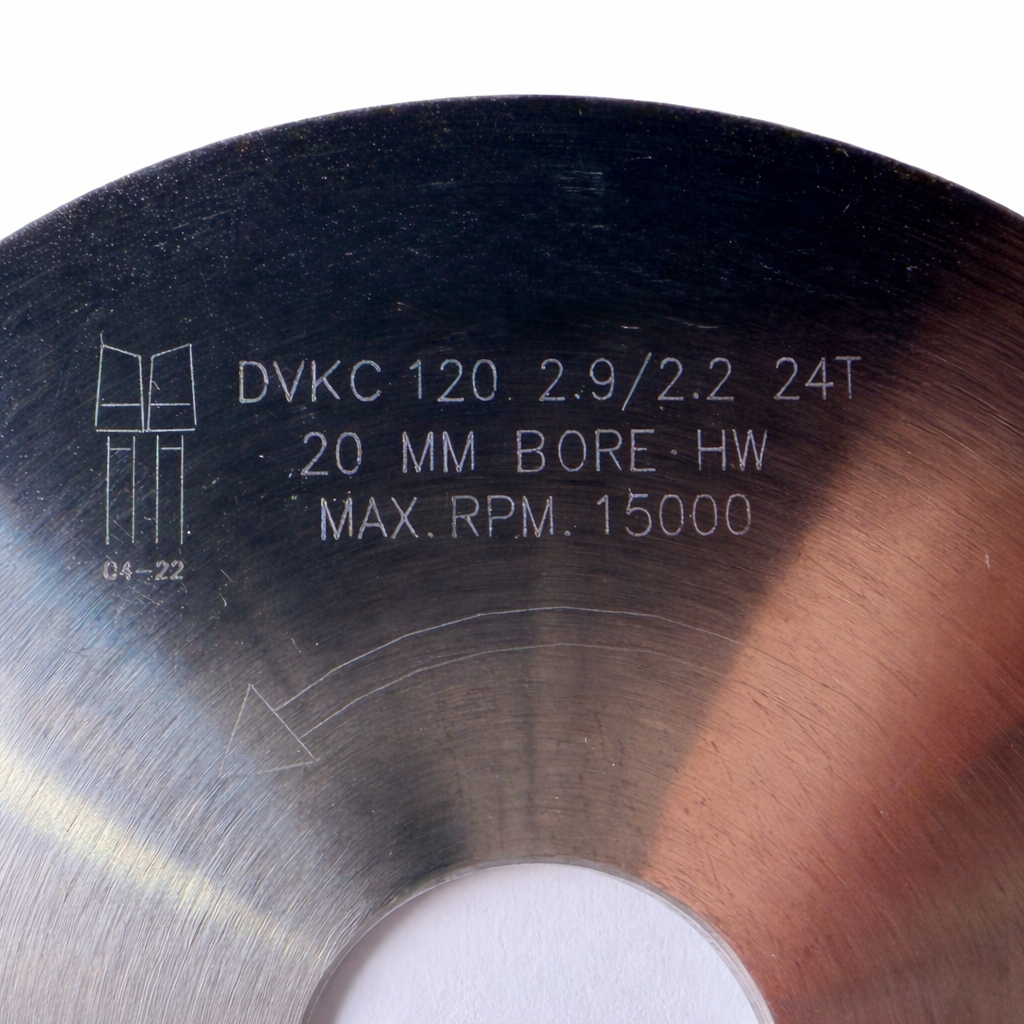

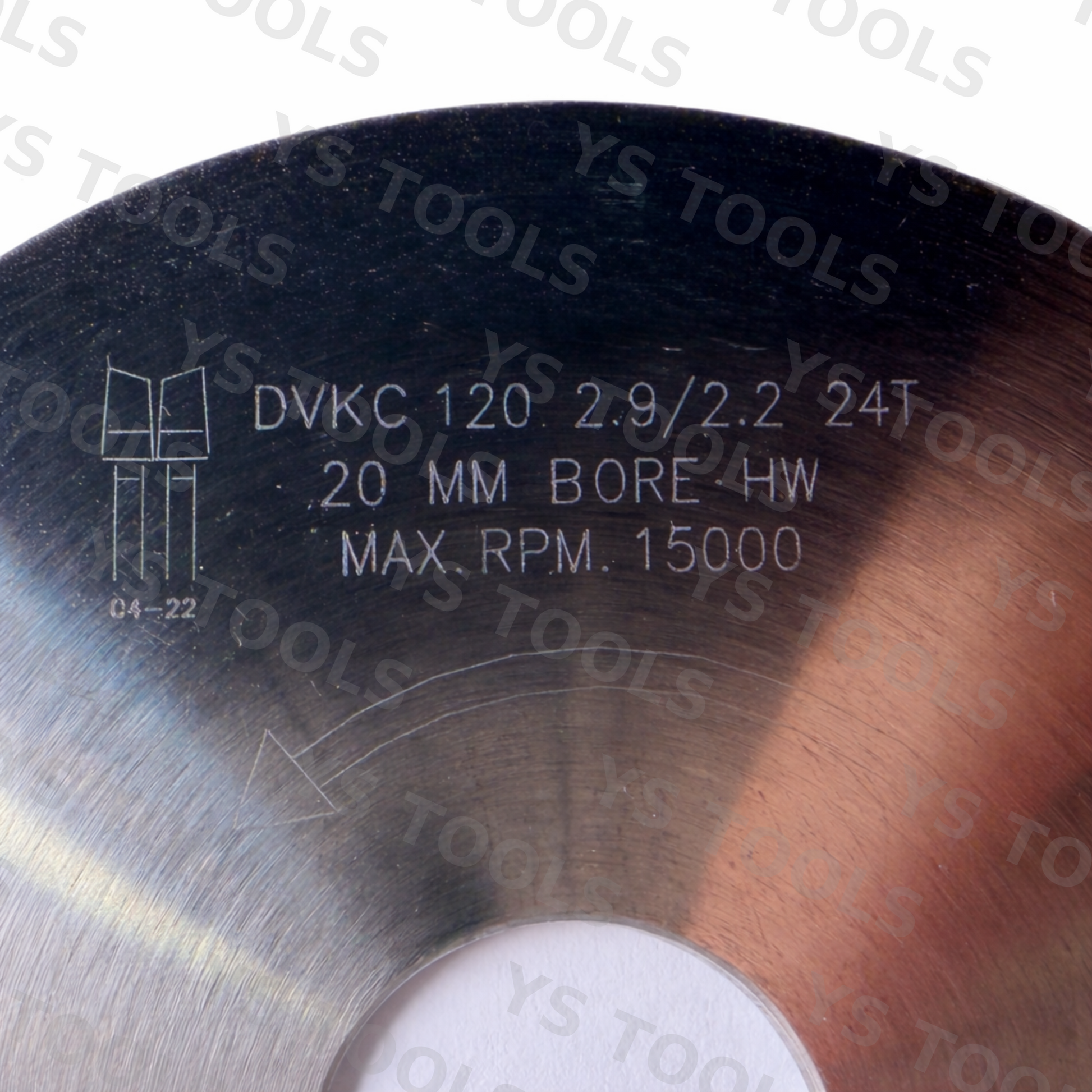

| Kerf width | 2.9–3.9 mm, depending on cutting depth; blade marking: 2.9 mm |
| Plate thickness | 2.2 mm |
| Tooth material | Carbide tipped (HW / TCT) |
| Maximum speed | 15,000 RPM |
Suitable Materials
Melamine-faced panels; laminated particleboard; MDF and HDF panels; veneered panels.
Selection & Setup
Adjust the cutting depth to set the scoring width within the 2.9–3.9 mm range. Match the scoring width and alignment to the main blade and follow the saw manufacturer's scoring setup instructions. Kerf width and plate thickness are separate dimensions.
Maximum speed is a limit, not a recommended operating speed. Follow the blade markings and your machine manufacturer's operating instructions.
Need Help Choosing?
Contact YS Tools with your machine model, material and required dimensions for selection support.
