12" 96T TCG TCT Saw Blade – 30mm Bore – Panel & Melamine
12" 96T TCG TCT Saw Blade – 30mm Bore – Panel & Melamine
Regular price
$135.00
Regular price
Sale price
$135.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

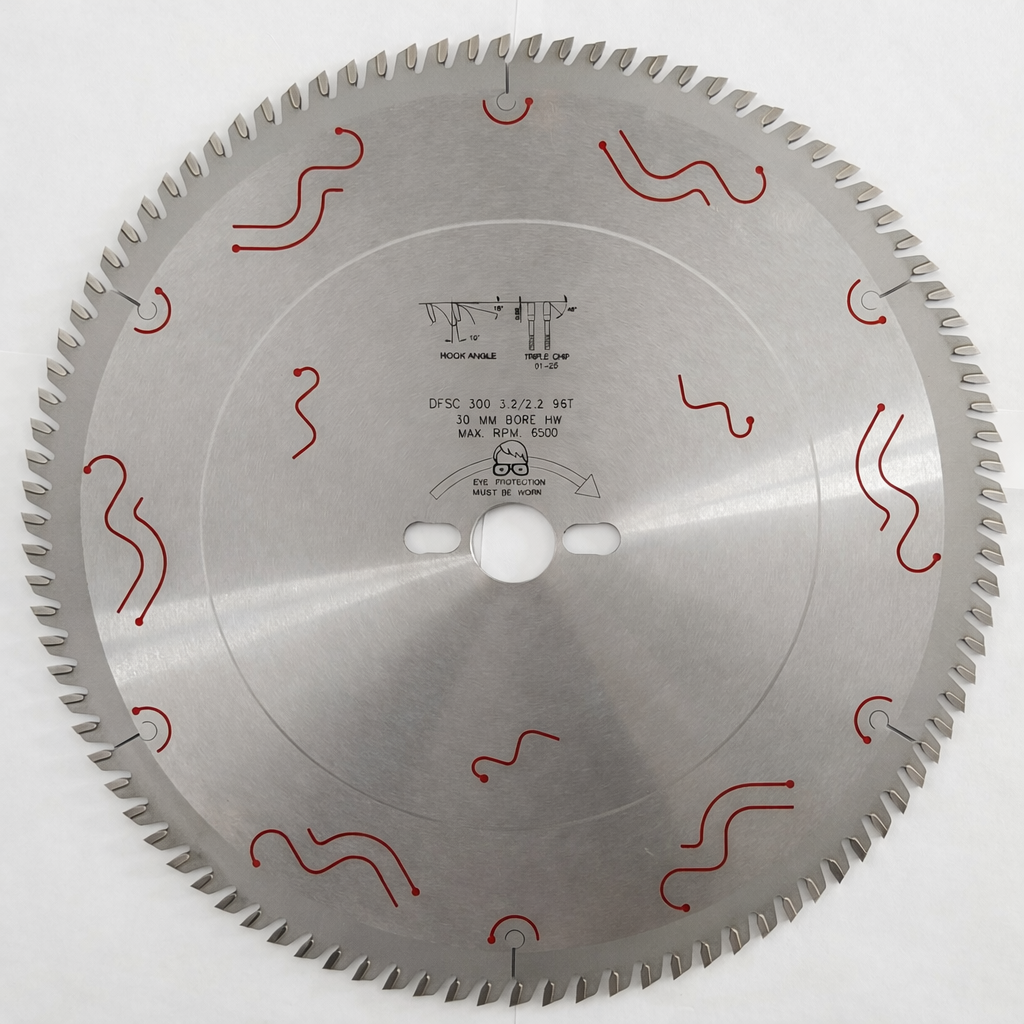

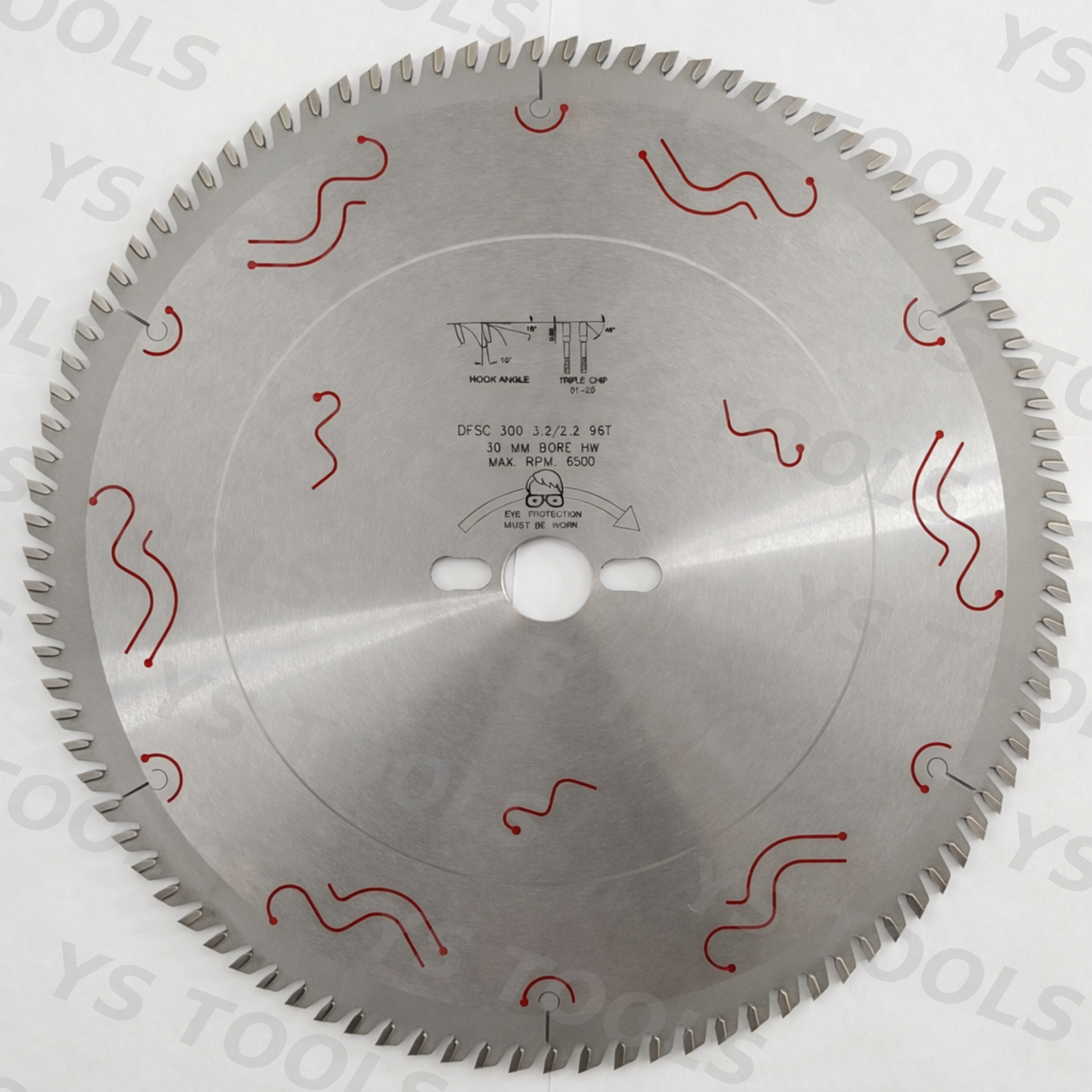

300 mm 96T TCG Carbide-Tipped Saw Blade
96-tooth TCG saw blade for cabinet and panel processing on compatible woodworking saws. The triple chip grind alternates trapezoidal and flat-top teeth for cutting engineered panels.
Technical Specifications
| Specification | Details |
|---|---|
| Diameter | 300 mm |
| Teeth | 96 |

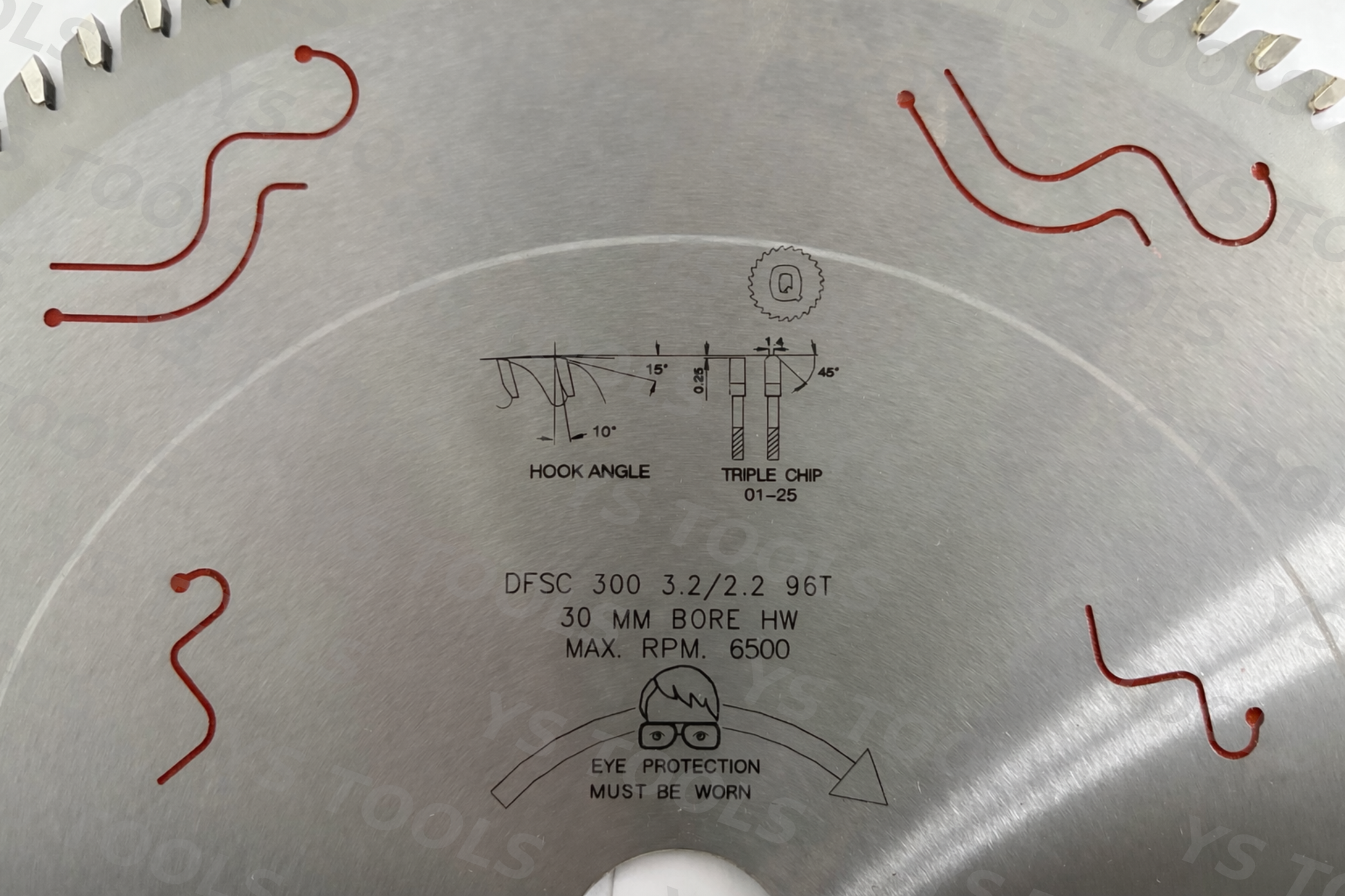

| Tooth geometry | Triple chip grind (TCG) |
| Bore | 30 mm |
| Kerf width | 3.2 mm |
| Plate thickness | 2.2 mm |
| Tooth material | Carbide tipped |
| Maximum speed | 6,500 RPM |
Suitable Materials
Melamine-faced panels; MDF; plywood; particleboard; laminated panels.
Selection & Setup
Check the 300 mm blade diameter and 30 mm bore against your saw's requirements. Select the scoring setup, blade height and feed for the material and required edge finish.
Maximum speed is a limit, not a recommended operating speed. Follow the blade markings and your machine manufacturer's operating instructions.
Need Help Choosing?
Contact YS Tools with your machine model, material and required dimensions for selection support.
