120mm 24T Adjustable Scoring Blade Set – Carbide Tipped – With Shim Kit

120mm 24T Adjustable Scoring Blade Set – Carbide Tipped – With Shim Kit

$120.00
$120.00
Sale Sold out

Achieve perfectly clean, chip-free cuts on laminated panels with this professional adjustable scoring blade system, including a precision shim adjustment kit for accurate kerf tuning.

Designed for panel saws and sliding table saws, this adjustable scoring blade allows operators to fine-tune scoring width to match the main saw blade, delivering factory-quality edges on melamine, MDF, and laminated boards.

Built for cabinet shops and industrial woodworking environments, this system provides maximum flexibility, precision, and long service life.

✅ Complete Adjustable Scoring Solution

Unlike fixed scoring blades, this system includes:

  • Adjustable two-piece scoring blade
  • Precision shim kit
  • Fine kerf adjustment capability

This allows precise alignment with different main blade kerfs without replacing blades.

🪚 Chip-Free Cutting Performance

The scoring blade creates a shallow pre-cut before the main blade passes through the material, preventing laminate breakout and surface chipping.

Ideal for:

  • Melamine panels
  • Laminated particleboard
  • MDF & HDF
  • Veneered panels
  • Cabinet and furniture components

Result: clean edges with minimal finishing required.

⚙️ Adjustable Kerf System

The blade consists of two scoring halves separated by precision shims.

By combining different shim thicknesses, operators can adjust scoring width for perfect alignment.

Adjustable kerf range:
👉 2.8 – 3.6 mm

Benefits:

  • Matches multiple main blade kerfs
  • Reduces setup time
  • Improves cutting accuracy
  • Extends blade usability

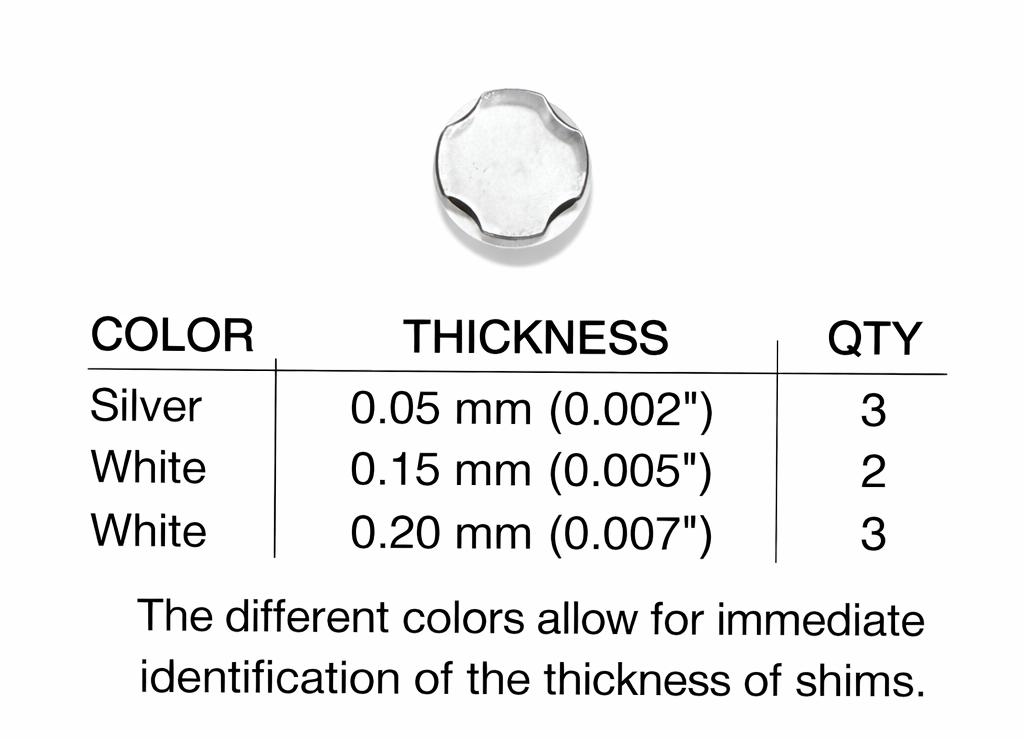

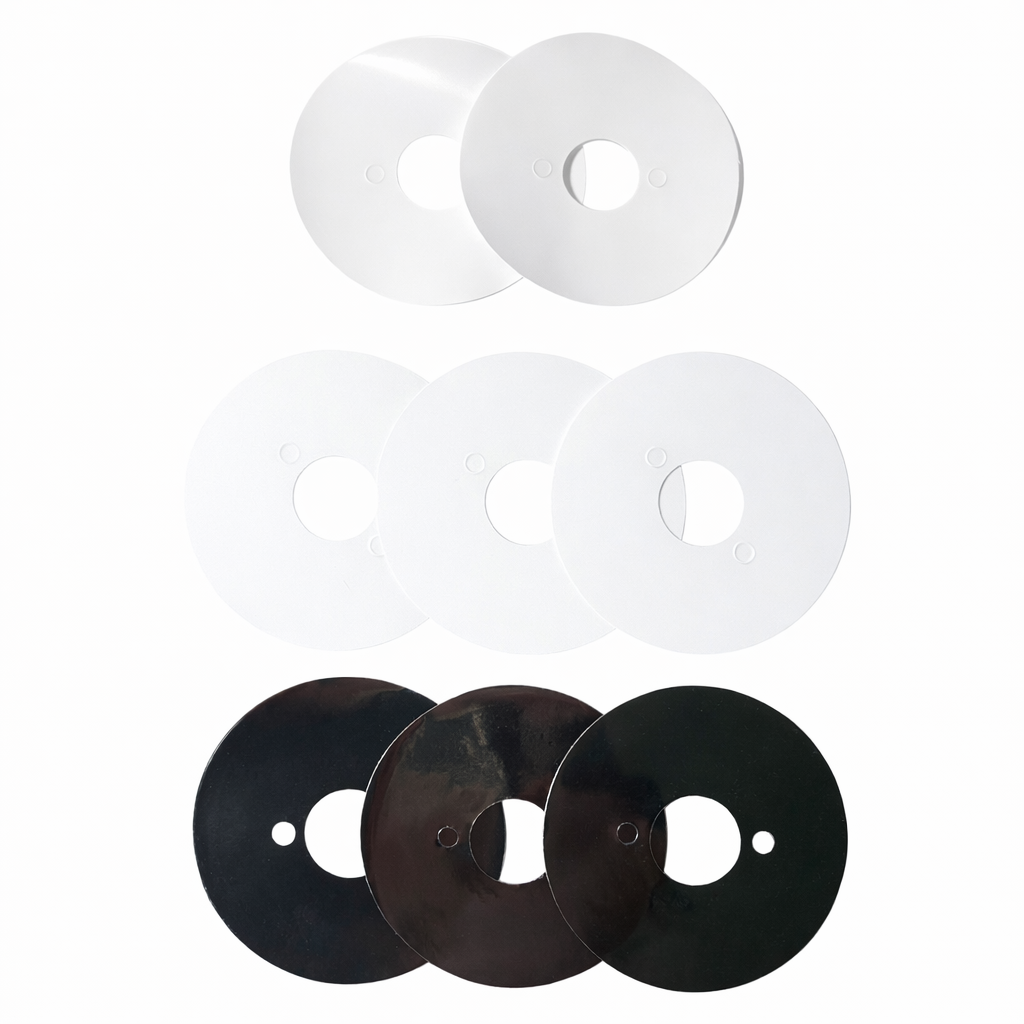

🔩 Included Shim Adjustment Kit

Color-coded shims allow fast and accurate setup adjustments.

Color Thickness Quantity
Silver 0.05 mm (0.002") 3 pcs
White 0.15 mm (0.005") 2 pcs
White 0.20 mm (0.007") 3 pcs

Quick thickness identification reduces machine downtime during blade setup.

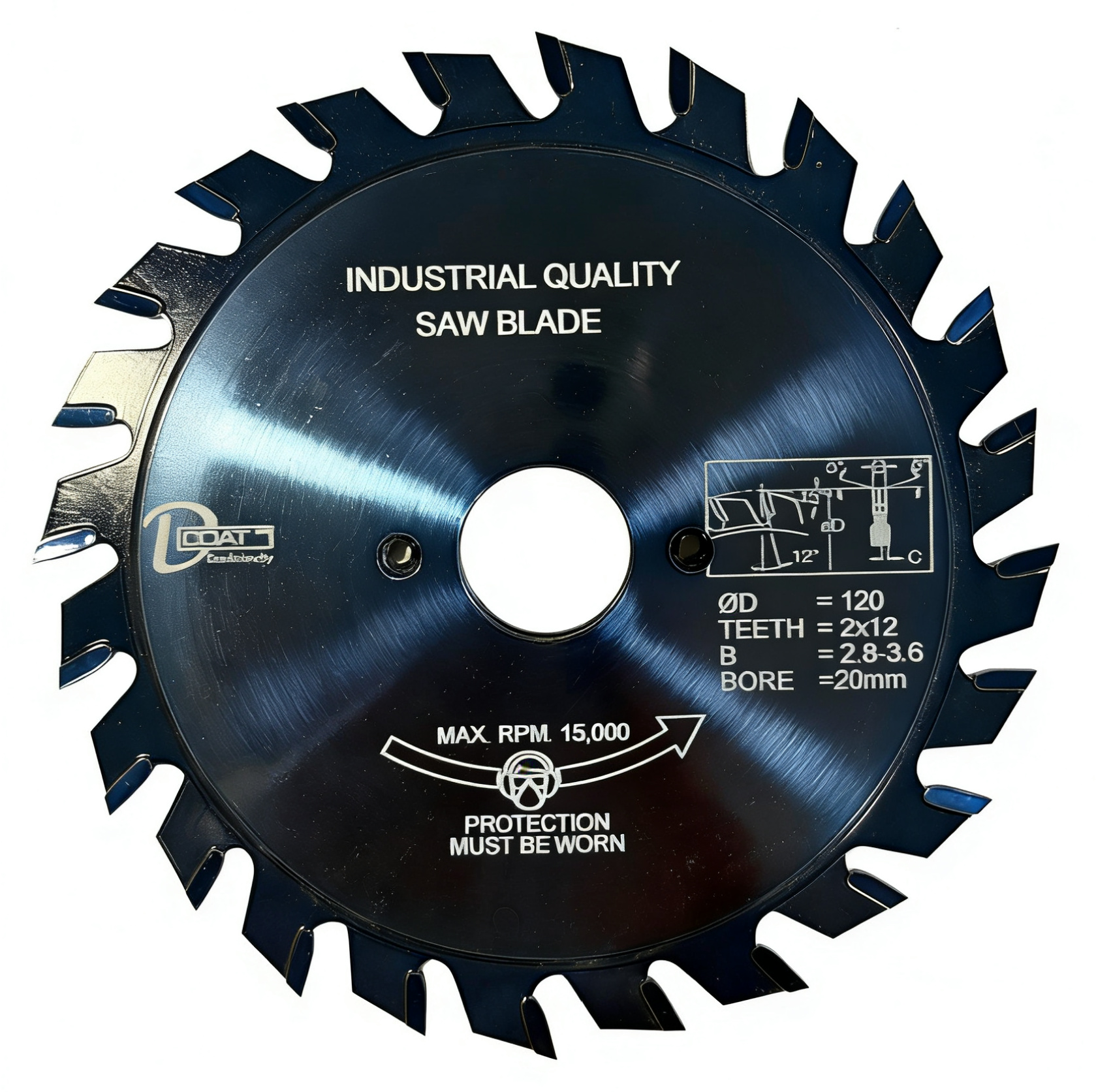

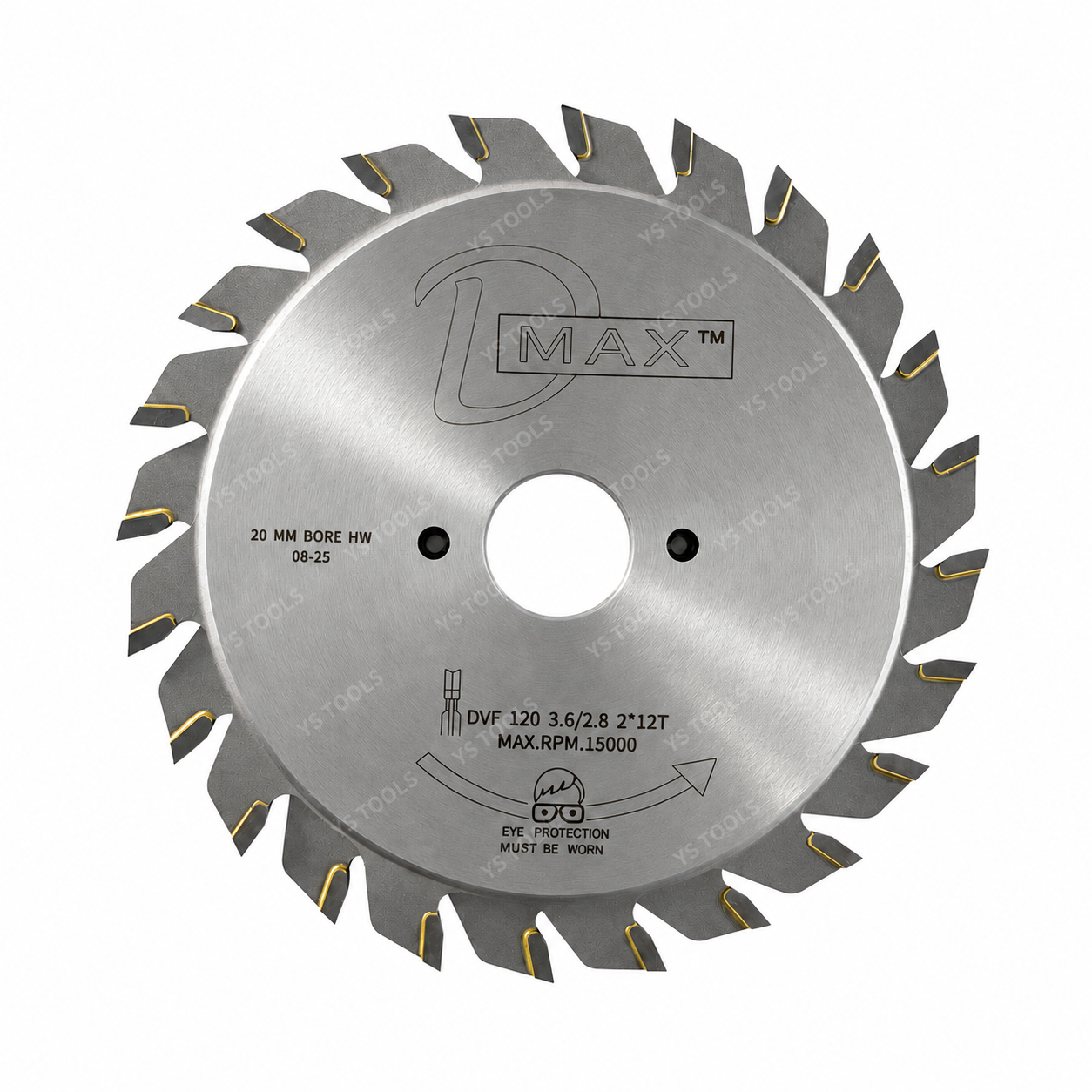

📐 Technical Specifications

Specification Details
Product Type Adjustable Scoring Blade System
Blade Diameter 120 mm
Tooth Configuration 2 × 12T (24 Teeth Total)
Tooth Material Tungsten Carbide Tipped (HW / TCT)
Bore 20 mm
Adjustable Kerf Range 2.8 – 3.6 mm
Plate Thickness 2.8 mm
Maximum Speed 15,000 RPM
Adjustment Method Precision Shim System
Machine Type Panel Saw / Sliding Table Saw
Application Laminated Panel Pre-Scoring

⭐ Why Choose an Adjustable Scoring Blade?

An adjustable scoring blade provides greater flexibility compared to fixed scoring blades:

  • One blade fits multiple main blade kerfs
  • Lower long-term tooling cost
  • Precise tuning for perfect cuts
  • Professional production results

📦 Package Includes

  • 1 × Adjustable Scoring Blade (2-piece design)
  • 1 × Precision Shim Adjustment Kit (8 pcs)
  • Thickness identification system

🧰 Recommended Setup Tip

For optimal results, adjust the scoring blade width slightly wider than the main saw blade kerf to eliminate laminate chipping.
