Disposable Carbide Insert Bottom Cleaning Router Bit – CNC Spoilboard Surfacing & Slotting Cutter
Disposable Carbide Insert Bottom Cleaning Router Bit – CNC Spoilboard Surfacing & Slotting Cutter
Regular price
$51.00
Regular price
Sale price
$51.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Replaceable Carbide Insert Surfacing & Grooving Router Bits
Router cutters with replaceable carbide inserts for flat-bottom grooves, slots, pockets and spoilboard surfacing. Select the cutter size for the required cutting width, machine clearance and collet.
Technical Specifications
| Specification | Details |
|---|---|
| Cutting edges | Replaceable carbide inserts |
| Applications | Grooving, slotting, pocketing, rabbeting and surfacing |
Available Sizes
Dimensions below are in millimetres. D = cutting diameter; SH = shank diameter; L = overall length.
| Cutting diameter | Shank diameter | Overall length | Insert configuration |
|---|---|---|---|

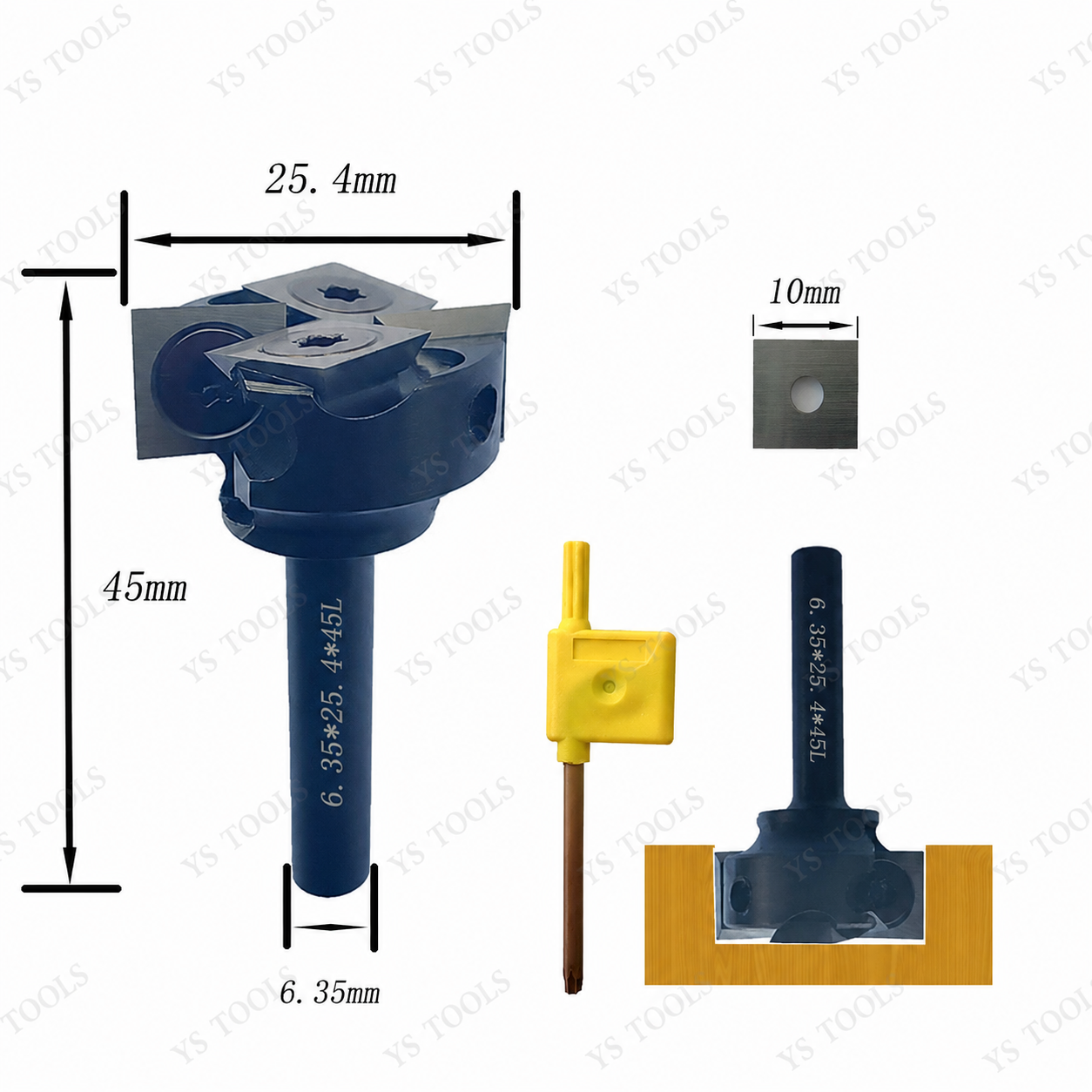

| 25.4 | 6.35 | 45 | 2+2 Inserts |

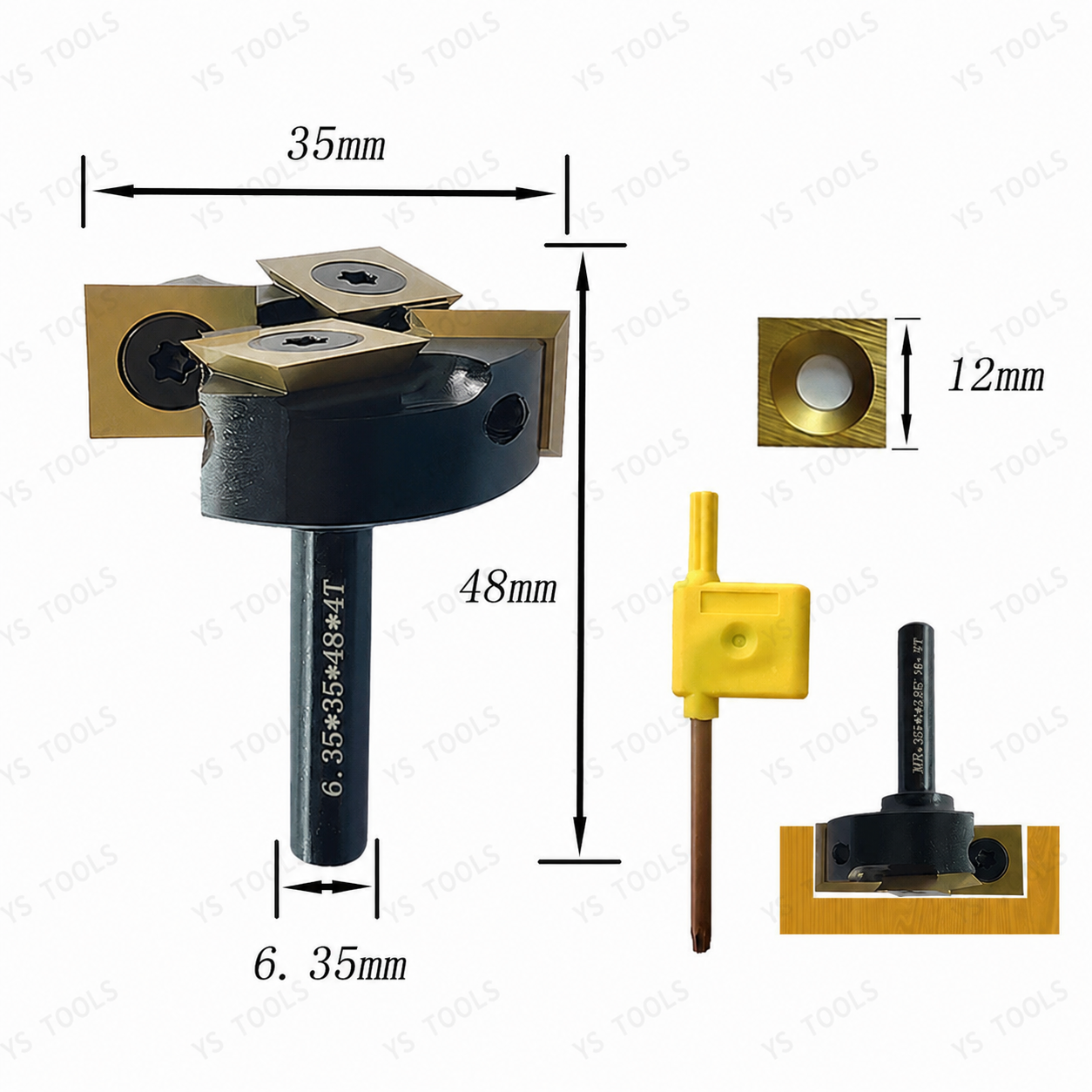

| 35 | 6.35 | 48 | 2+2 Inserts |

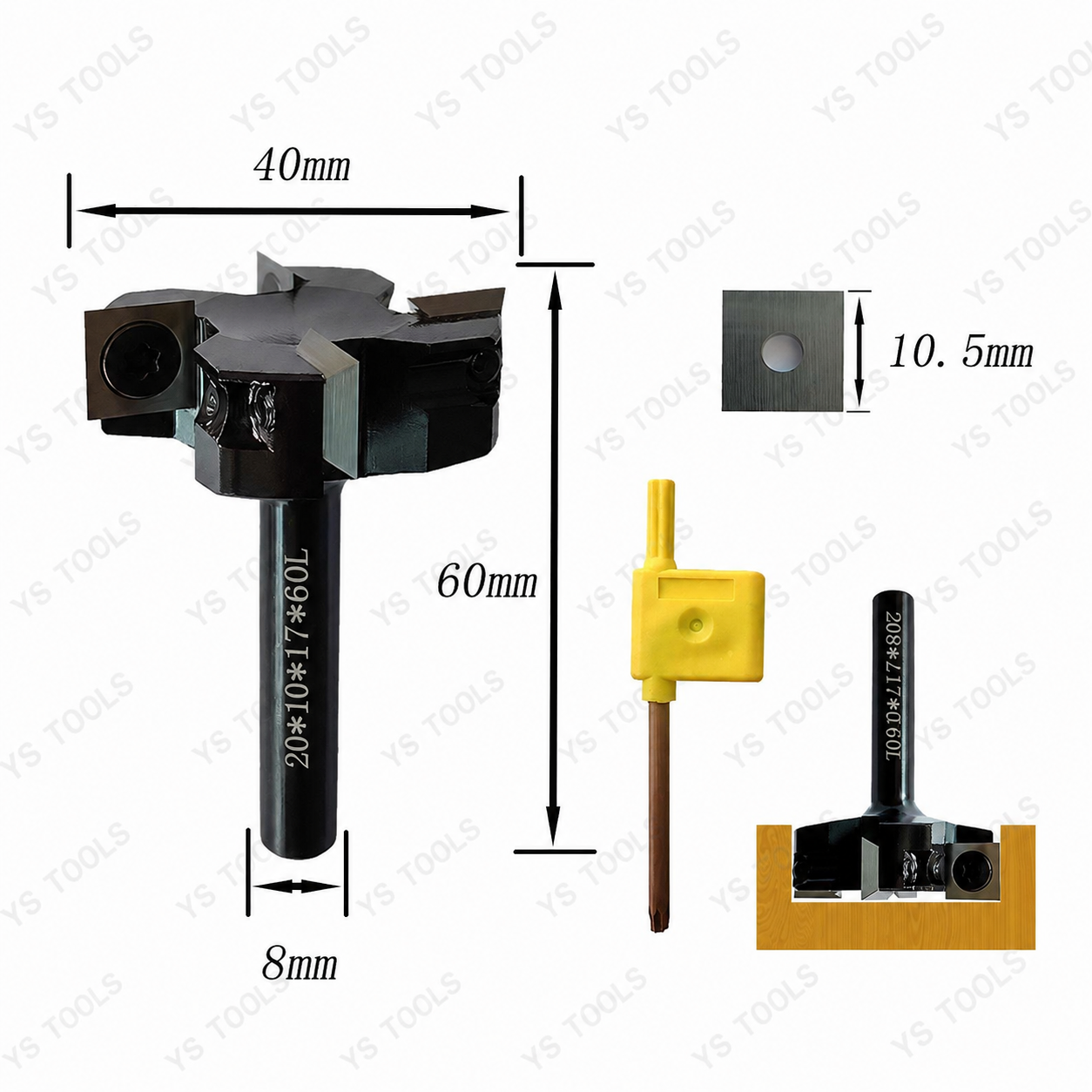

| 40 | 8 | 60 | 4 Inserts |

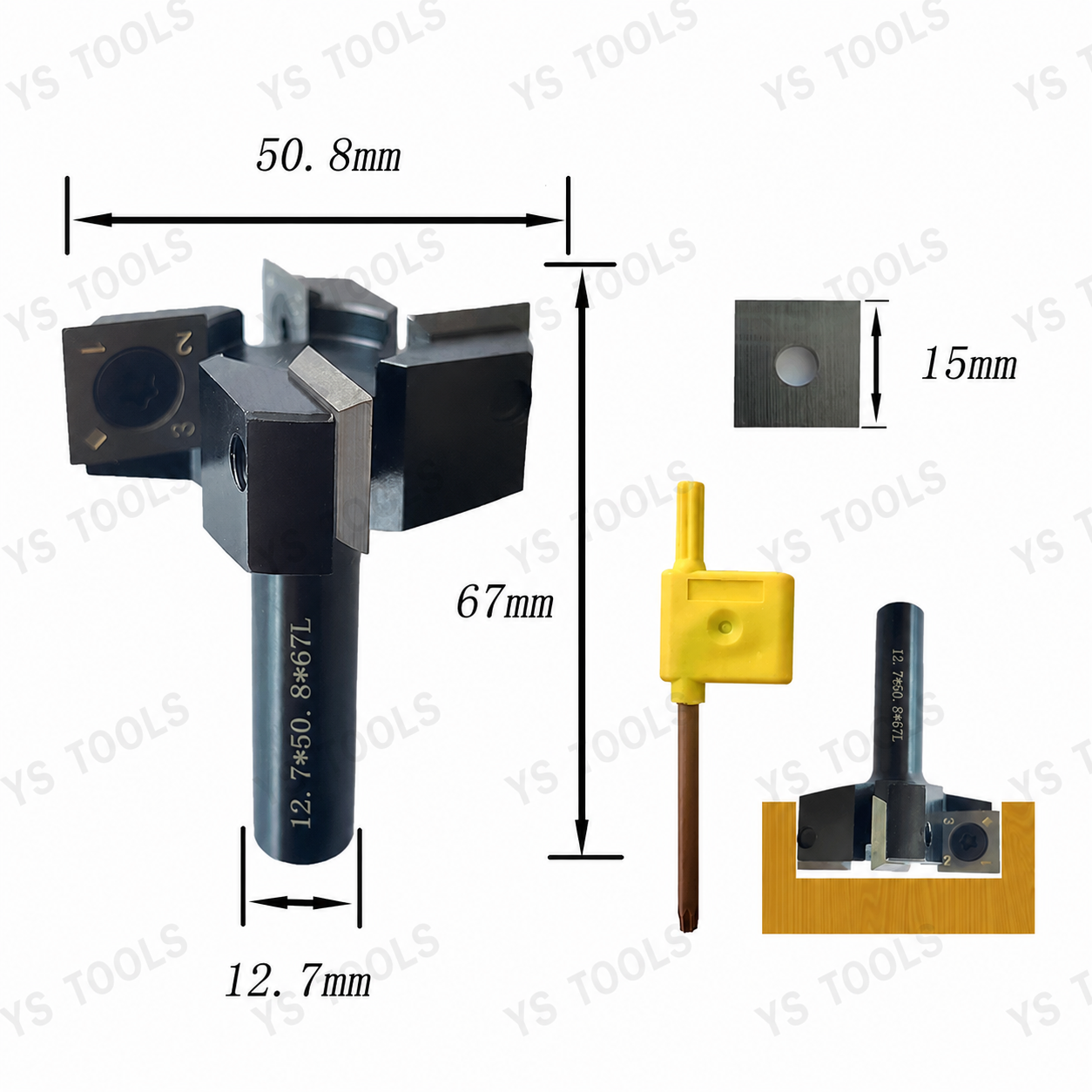

| 50.8 | 12.7 | 67 | 4 Inserts |

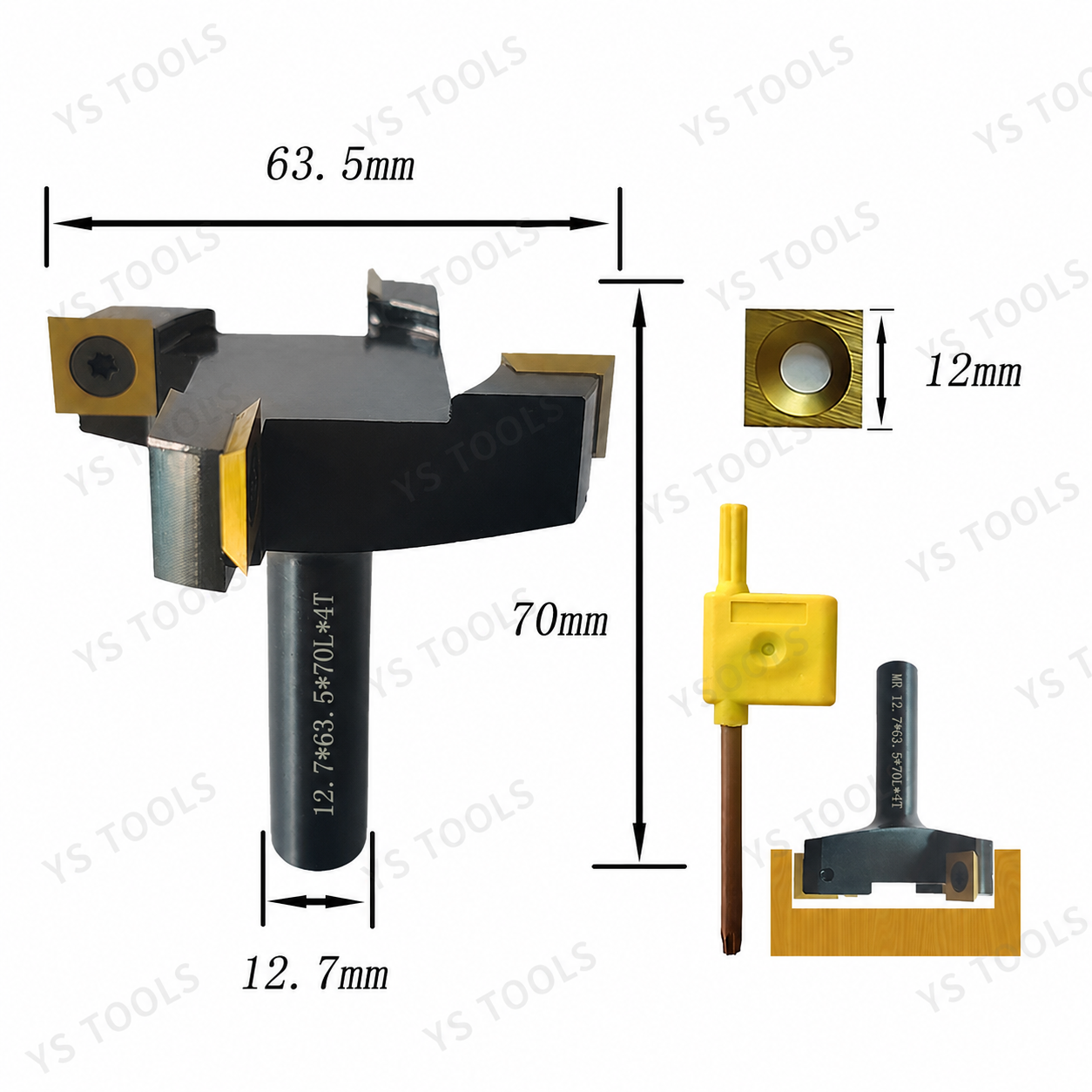

| 63.5 | 12.7 | 70 | 4 Inserts |

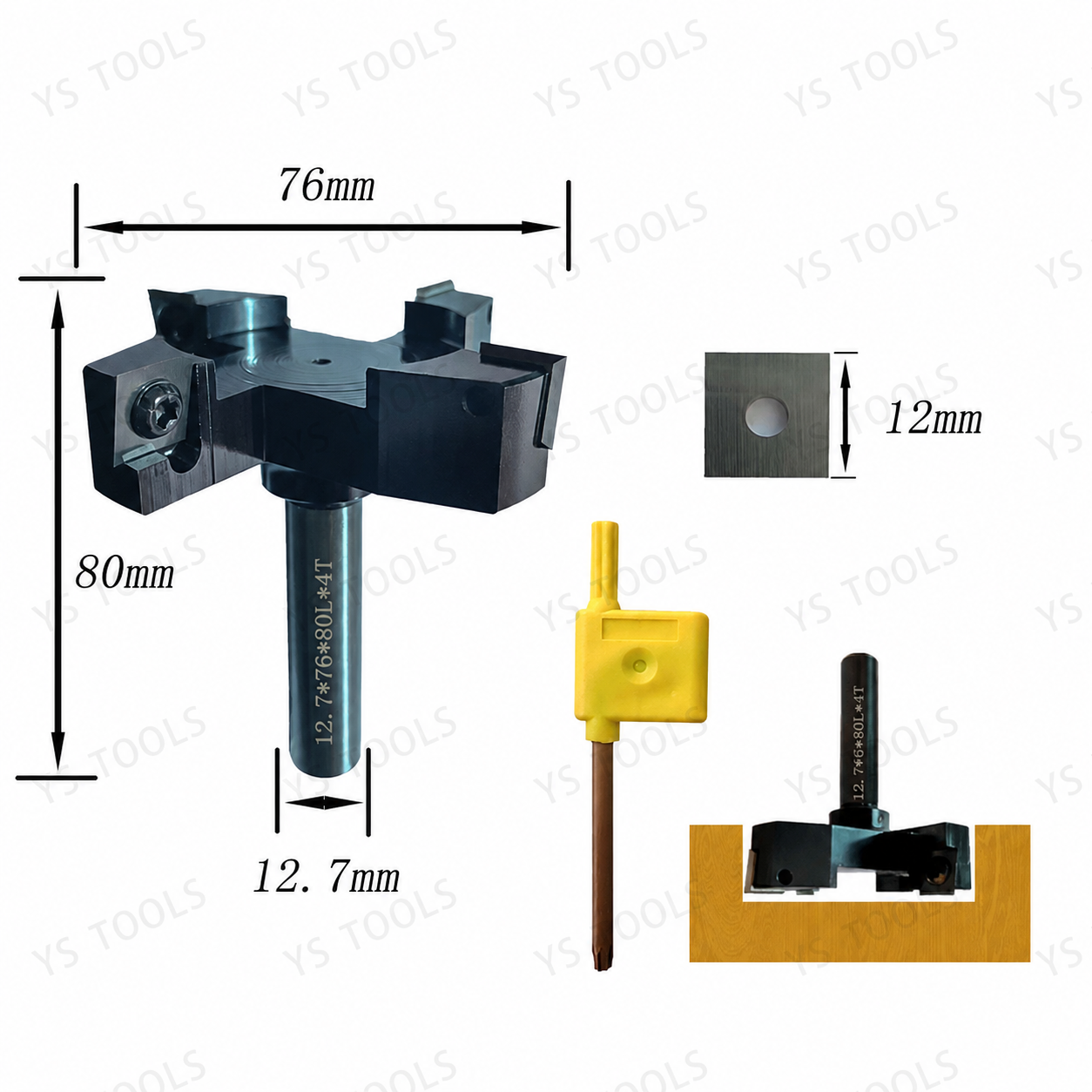

| 76 | 12.7 | 80 | 4 Inserts |

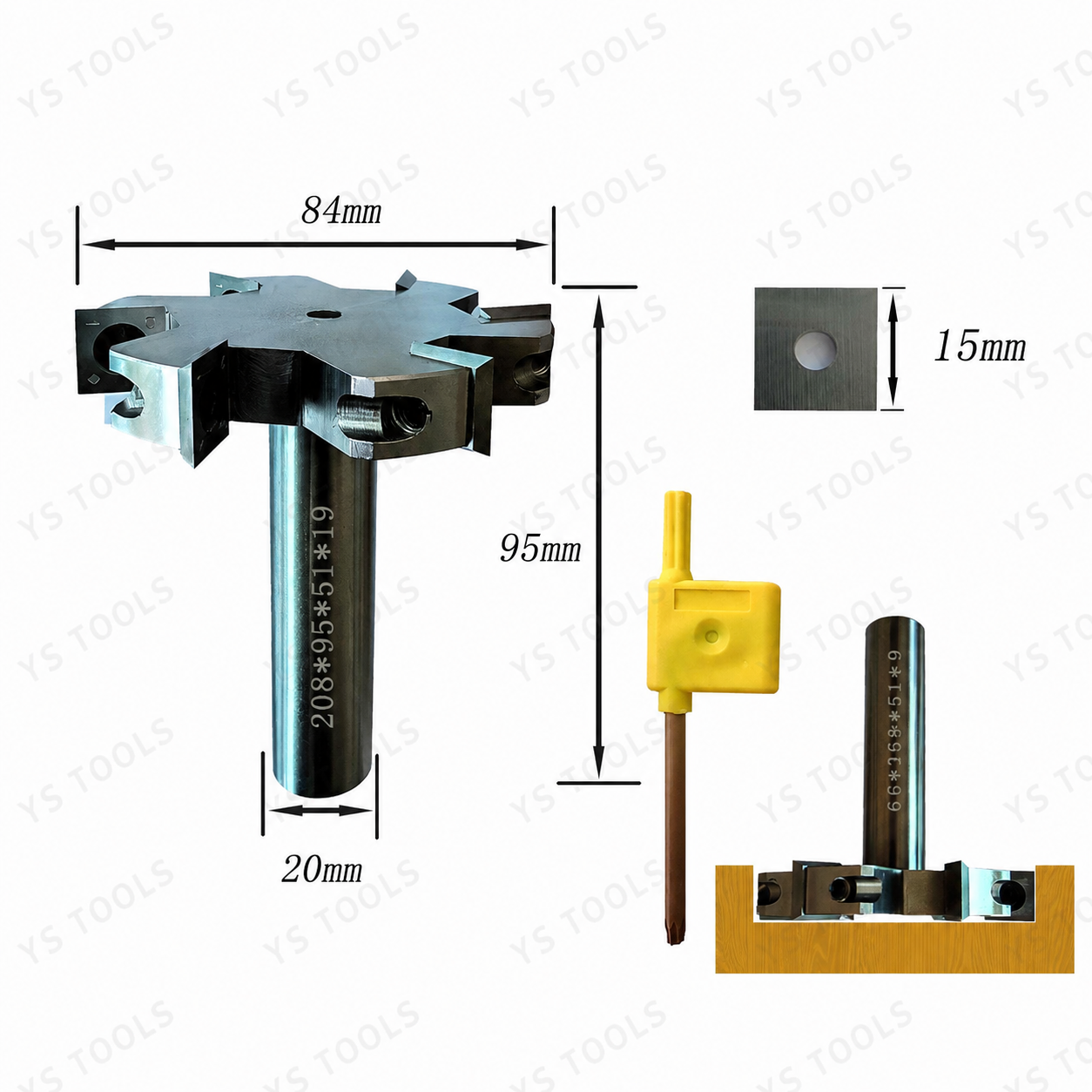

| 84 | 20 | 95 | 6 Inserts |

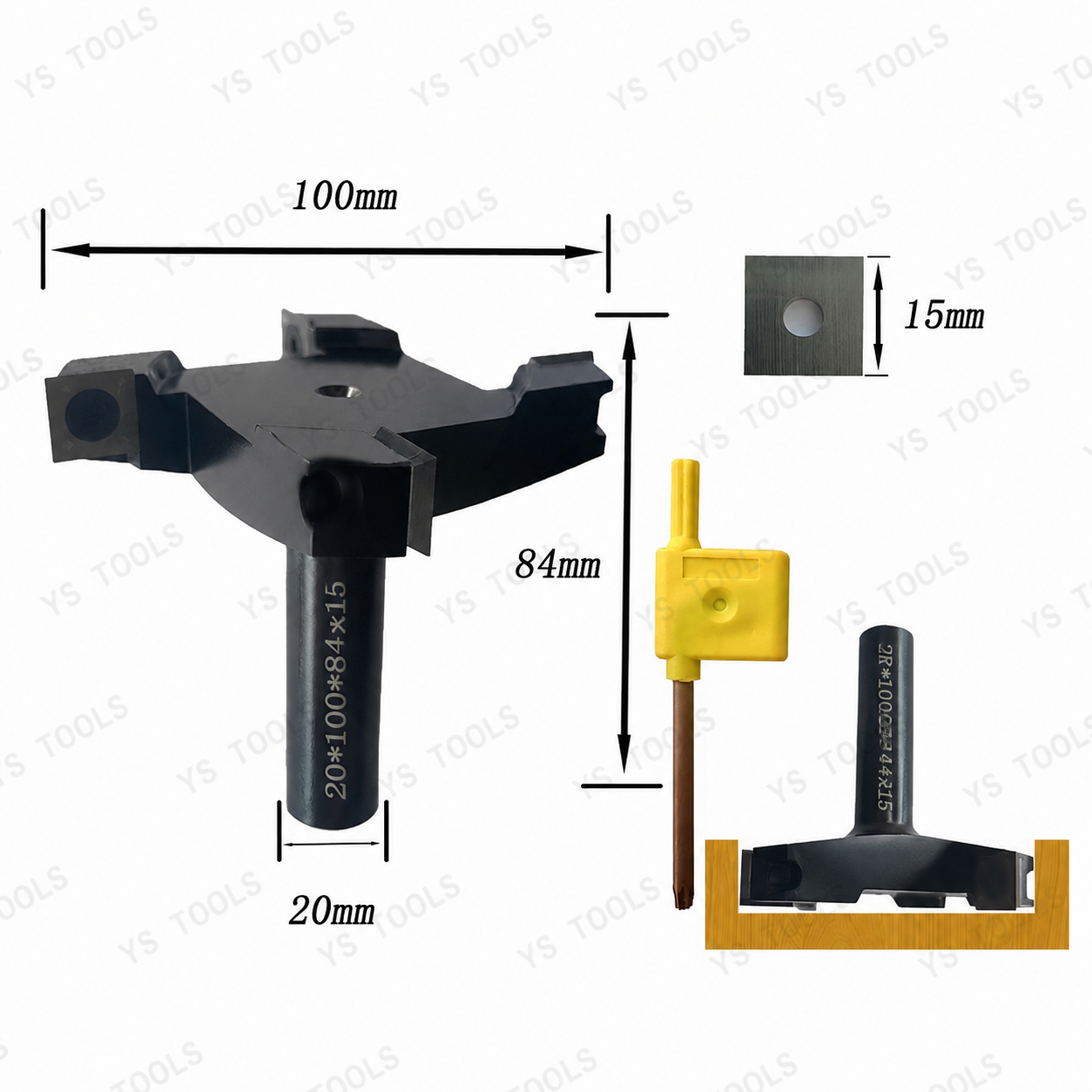

| 100 | 20 | 84 | 4 Inserts |
Suitable Materials
MDF, plywood, particleboard, laminated panels, hardwood and softwood.
Selection & Setup
Choose the cutting diameter, shank diameter and overall length from the size table. Confirm replacement insert compatibility and the operating limits for the selected cutter before use.
Need Help Choosing?
Contact YS Tools with your machine, material and required dimensions for selection support.
