3mm TCT Straight Router Bit – 1/4" Shank – CNC

3mm TCT Straight Router Bit – 1/4" Shank – CNC

Regular price $23.00
Regular price Sale price $23.00
Sale Sold out
Shipping calculated at checkout.
Quantity

3 mm TCT Straight Router Bit — 1/4" Shank

Two-flute carbide-tipped straight router bit for narrow grooves, slots and straight cutting in CNC woodworking.

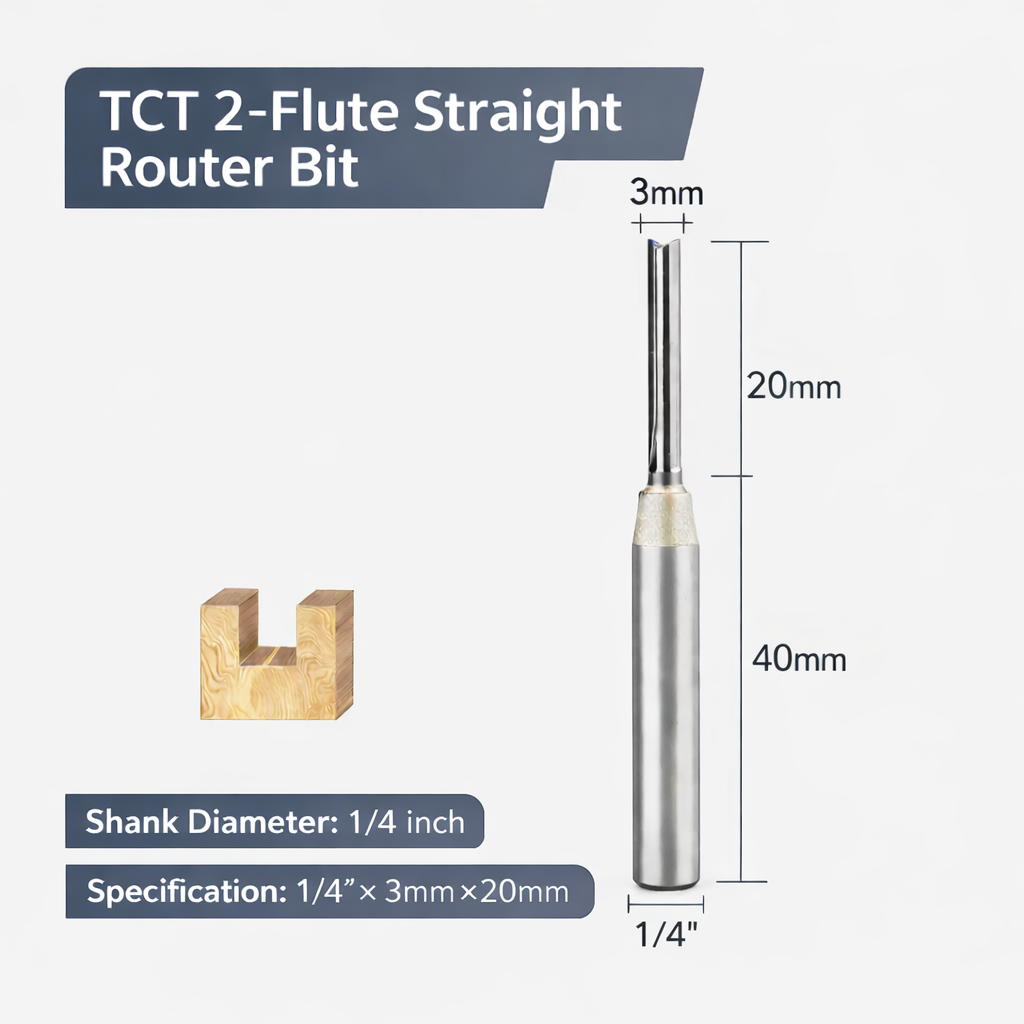

Technical Specifications

Specification Details
Cutting diameter 3 mm
Cutting length 20 mm
Overall length 60 mm
Shank diameter 1/4" (6.35 mm)
Flutes 2
Cutting edges Tungsten carbide tipped (TCT)

Suitable Materials

MDF, plywood, particleboard and laminated panels.

Selection & Setup

Use a compatible 1/4-inch collet. Select cutting depth and feed for the small cutting diameter, material and machine.

Need Help Choosing?

Contact YS Tools with your machine, material and required dimensions for selection support.
